Machinery services
LONG TURNING

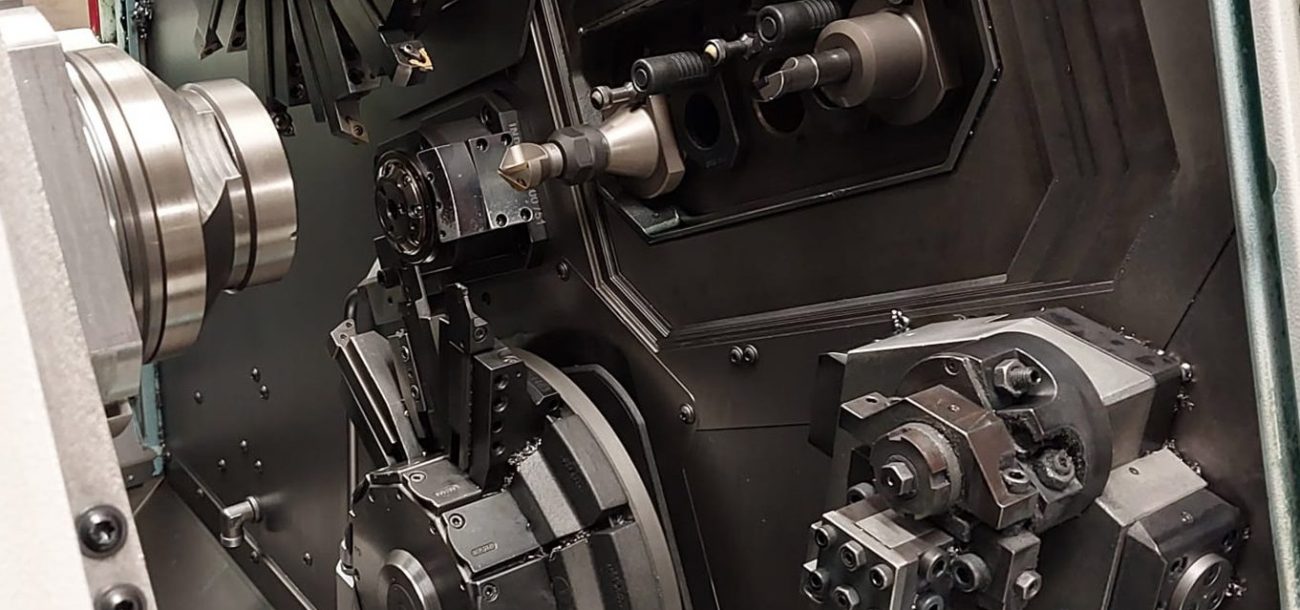

Traub TNL26 (3 units)
Multi-axis lathe with two spindles, sliding head stock function, live tools, two turrets with two additional stations, and a 3-meter bar feeder. Diameter range: 10–32 mm for bar work.
CNC MULTI-FUNCTION LATHES WITH BAR FEEDER
Traub TNL26K
Multi-axis lathe with two spindles, live tools, two turrets and two additional stations. 3-meter bar feeder. Diameter range: 5–36 mm for bar work. Automated long part ejector.
Traub TNK36
Multi-axis lathe with two spindles, live tools, a turret with live tools and two additional stations. 3-meter bar feeder. Diameter range: 5–36 mm for bar work.
Haas DS-30Y
Multi-axis lathe with a turret and two spindles, live tools with Y-axis. A 1.5-meter bar feeder. Diameter range: 15–75 mm for bar work. Distance between spindles: 820 mm.
Haas DS-30 with bar feeder
Basic lathe with a turret, two spindles, and a 1.5-meter bar feeder. Diameter range: 15–75 mm for bar work. For part turning, up to 350 mm in diameter. Distance between spindles: 820 mm.
CNC MULTI-FUNCTION LATHES WITH GANTRY LOADER
Takisawa TNR 200YS
Multi-axis lathe with a turret and two spindles, live tools with Y-axis, and a gantry robot. Diameter range: 30–350 mm.
Turning Length: 510 mm
Turning Diameter with Robot: 160 mm
Spindle Power: 15 kW, 6000 RPM
Gantry robot, max handling capacity: Ø 160 mm / 5 kg
Download the Mecmill Production Services Brochure:
*By providing your contact details, you agree that our team may contact you via email.
MILLING
CNC LONG MILLING MACHINE
Hedelius C-80 P-4500 (with HEIDENHAIN control)
Vertical milling machine with a working area of 800×4500 mm and spindle speed of 7500 RPM. Suitable for milling long parts made of steel, high-strength alloys, and stainless materials.
X Travel: 4500 mm (3-axis)
X Travel: 4000 mm (4-axis)
Y Travel: 800 mm
Z Travel: 600 mm
Dividable workspace for efficient setup and machining operations.
Spindle Power: 27 kW / 7500 RPM for effective chip removal
CNC MACHINING CENTERS WITH PALLET CHANGER
Haas VF-5
Big taper 50, pallet size 1500×600 mm
Vertical milling machine with a working area of 615×1500 mm and spindle speed of 7500 RPM. Suitable for machining steel, high-strength alloys, and stainless materials.
Haas VF-3
4-position pallet changer
Vertical milling machine with a working area of 500×900 mm and spindle speed of 15000 RPM. Suitable for machining steel, aluminum, and plastics.
CNC MACHINING CENTERS
Haas VF-3
15000 RPM spindle
Vertical milling machine with a working area of 500×900 mm and spindle speed of 15000 RPM. Suitable for machining steel, aluminum, and plastics.
Haas Minimill
15000 RPM spindle
Vertical milling machine with a working area of 406×356 mm and spindle speed of 15000 RPM.
QUALITY ASSURANCE
3D Measuring Equipment
Our measuring equipment range covers the working areas of machines for both internal and external geometries. With the measuring devices on the machines, we can check dimensions and the positions of shapes without removing parts from the machines.
Using our 3D measuring machine, we can measure and verify all products and geometries we manufacture from various sides of the part. Our operations are certified with ISO 9001 certification.
INITIAL PRODUCTION & FINISHING
RAW MATERIAL CUTTING
Kaltenbach
Automatic feed and laser measuring equipment. Band saw with automatic feed and laser measuring capabilities, suitable for diameters up to 350 mm.
ROBOTIC WELDING CELL AND WELDING MACHINES
MIG/MAG Welding Cell Equipped with ABB Robot
IRBP 300 K / 2000MM / 1000MM handling device.
KEMPPI MIG welding machines: X8, MASTER MIG355, and KEMPACT323
with comprehensive accessories.
MASTER TIG 2500
Kemppi Mastertig AC/DC 2500W.
FINISHING AND COATING
DEBURRING CABINET
For finishing welded parts and surface roughening.
Max. size for parts: 1000x500x500 mm / 200 kg.
POWDER COATING
Comprehensive services available through us.
WET COATING
Tailored solutions available.
